Separation and Continuous Discharge of Coarse Material
The OKO-rosi rotary screen separates unwanted coarse material from liquid waste streams and discharges it continuously. It was specially designed for robust use in physico-chemical wastewater treatment plants and is ideal for receiving industrial wastewater.

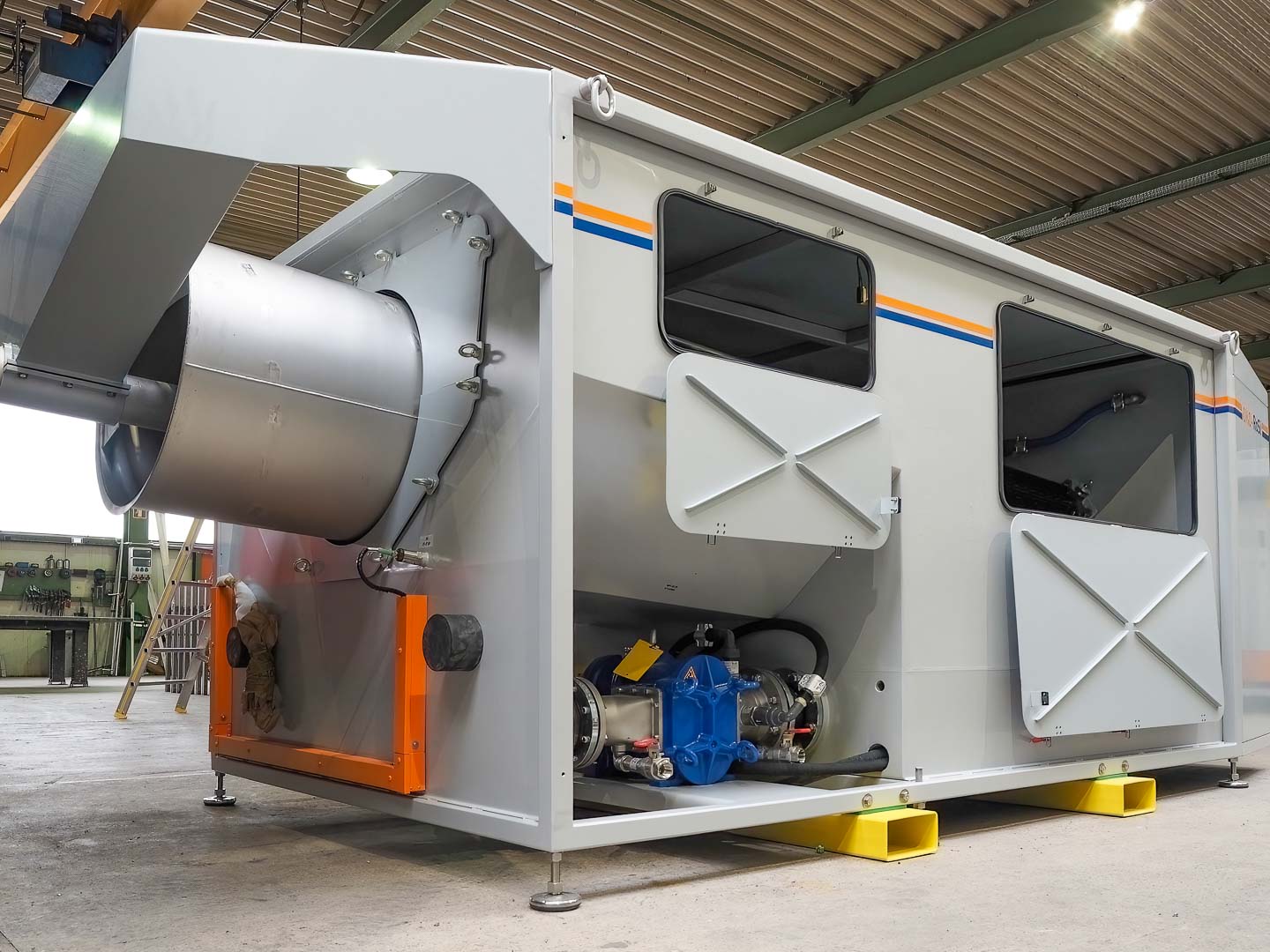

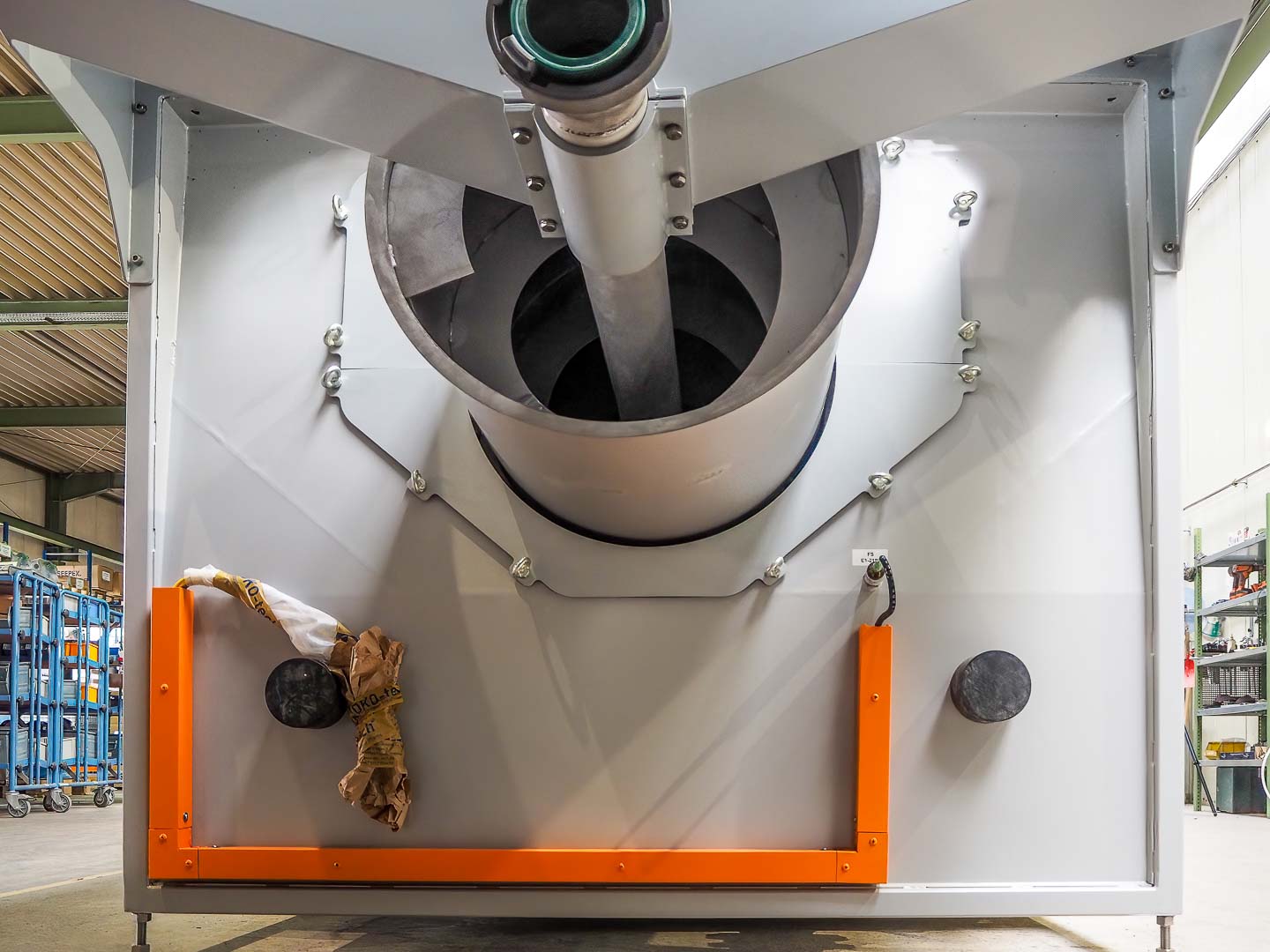

OKO-rosi is completely encapsulated to avoid emissions. The dirty water is channelled into the internal screening drum, which reliably retains impurities larger than 3 mm such as gloves, knife blades, tools, leaves, stones, etc. A screw conveyor continuously and efficiently discharges the coarse material into a collection container.
Optional sensory
detection of free
phase oil
System design in
accordance with
ATEX (option)
Integrated sensors
Closed design
with exhaust-air
connection
Easy-maintenance
transfer pump
Optional neutralisation
for pH adjustment
Intuitive operation
thanks to the
OKO-control unit
Zalety
- Volume flows with a high contaminant load of up to 60 m³/h
- Separation of impurities > 3mm
- Continuous discharge of impurities
- Integrated high-performance rinsing system
- Bardzo niskie koszty utrzymania i konserwacji
- Bardzo małe zapotrzebowanie na miejscef
- Low energy demand
Features:
Separation of Impurities > 3mm
- level-controlled waste transfer, impurities > 3 mm are separated
High-Performance Rinsing System

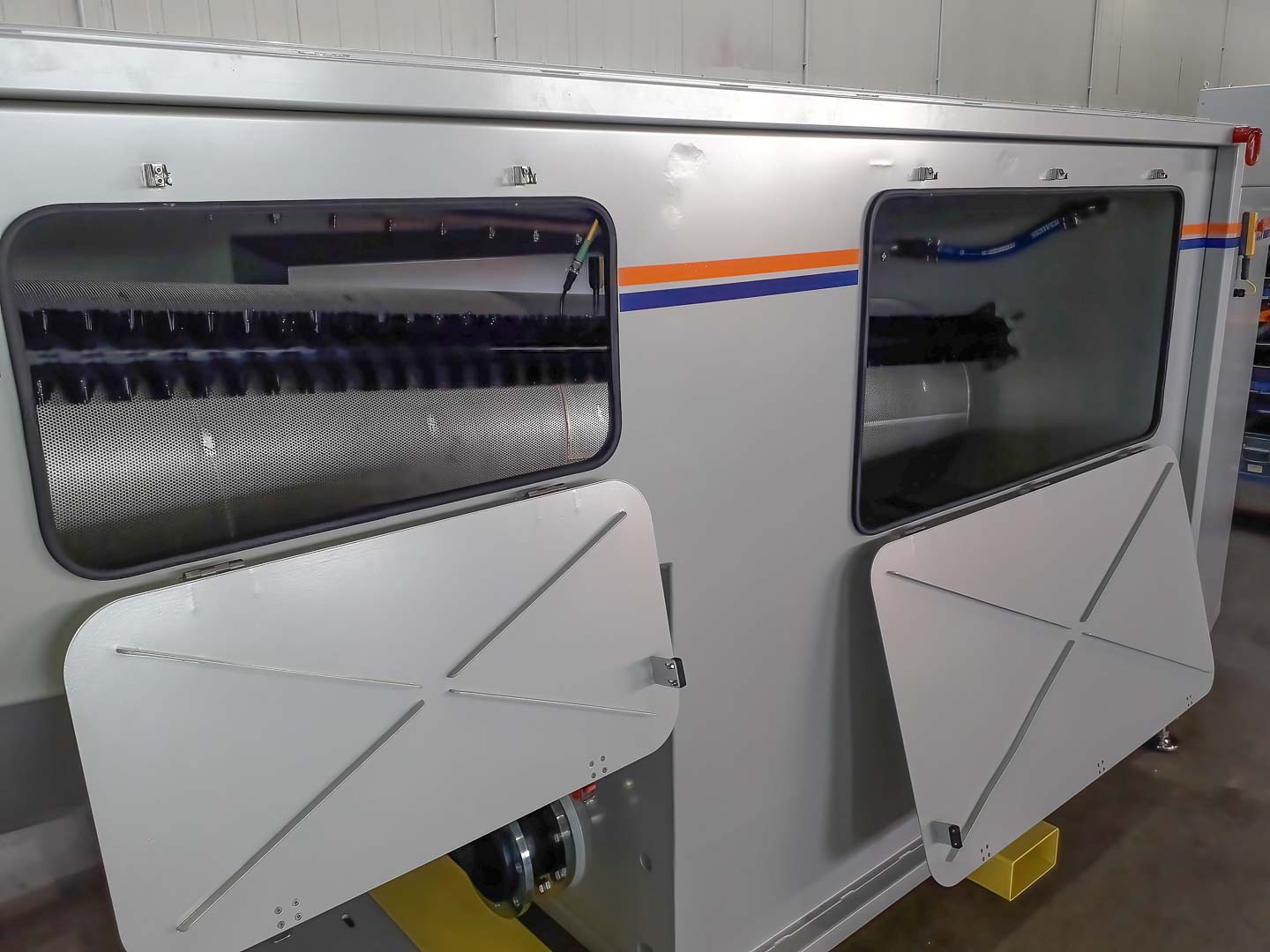

An integrated high-pressure rinsing system and brushes ensure that the screen perforations always remain clear. The water, now free of coarse material, is transported to the next treatment step via a directly flange-mounted pump.
- booster pump and nozzle system for cleaning screen drum and tank
Pump Technology
- automated impurity discharge
- transfer pump with a capacity of up to 60 m³/h
[-] Dosiertechnik

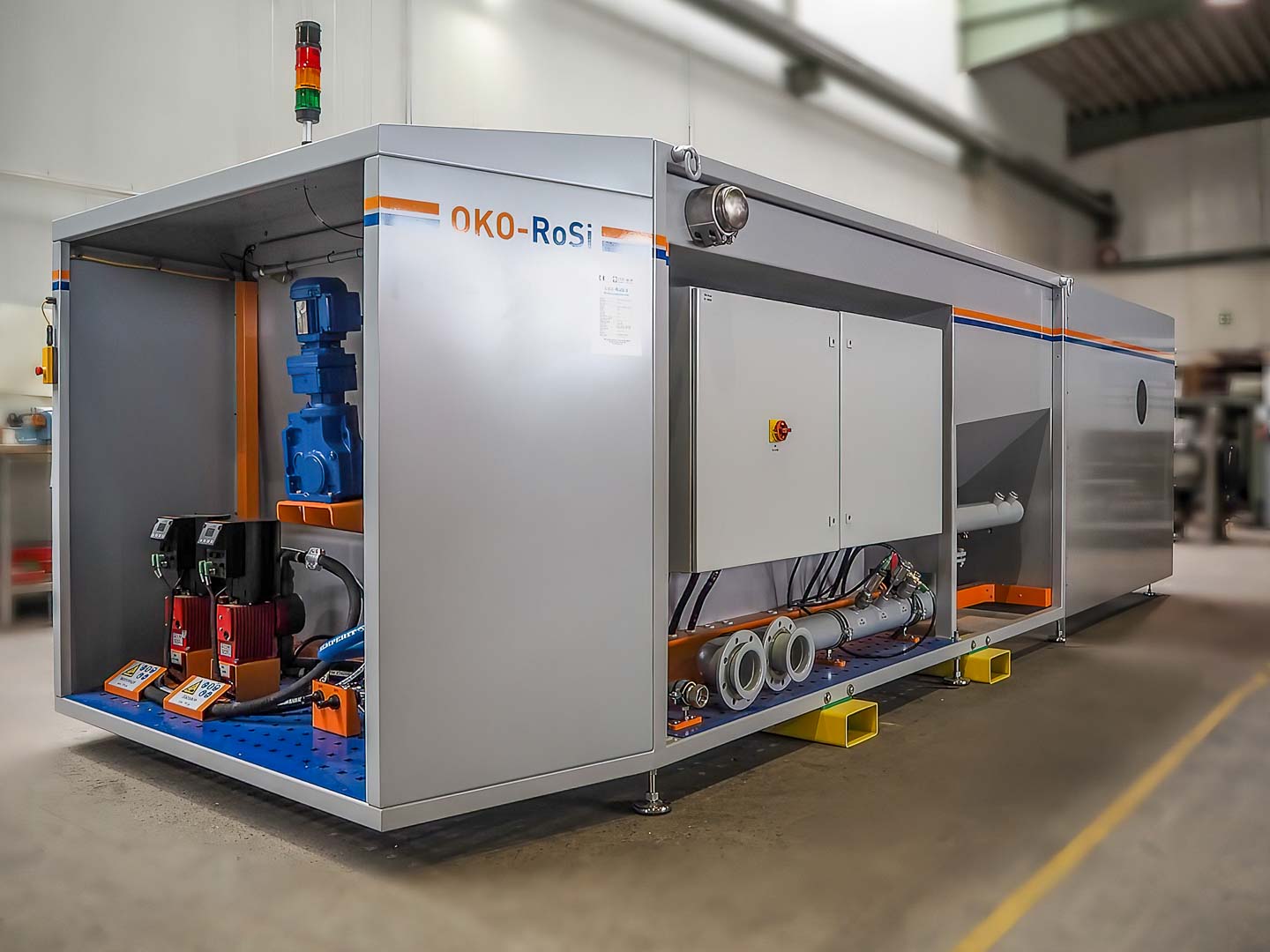

Parallel zur Störstoffabtrennung kann optional eine Neutralisation der zu behandelnden gewerblichen/industriellen Abwässer bzw. wässrigen Abfälle erfolgen. Es ist je eine Dosierpumpe für Säure und Lauge zur pH-Korrektur vorgesehen.
Mess- und Analysetechnik
Die Füllstandsüberwachung in dem OKO-rosi ermöglicht das Automatisieren des Abpumpvorganges. Ferner sind auch Temperatursensor und Druckmesser installiert, die dem Schutz der Anlagentechnik dienen.
Optional kann das Rotationssieb OKO-rosi auch freie Ölphasen erkennen und Abwässer mit einem pH-Wert > 4 bis < 11 direkt auf den gewünschten pH-Wert einstellen.
